Description

The complete live sonar solution

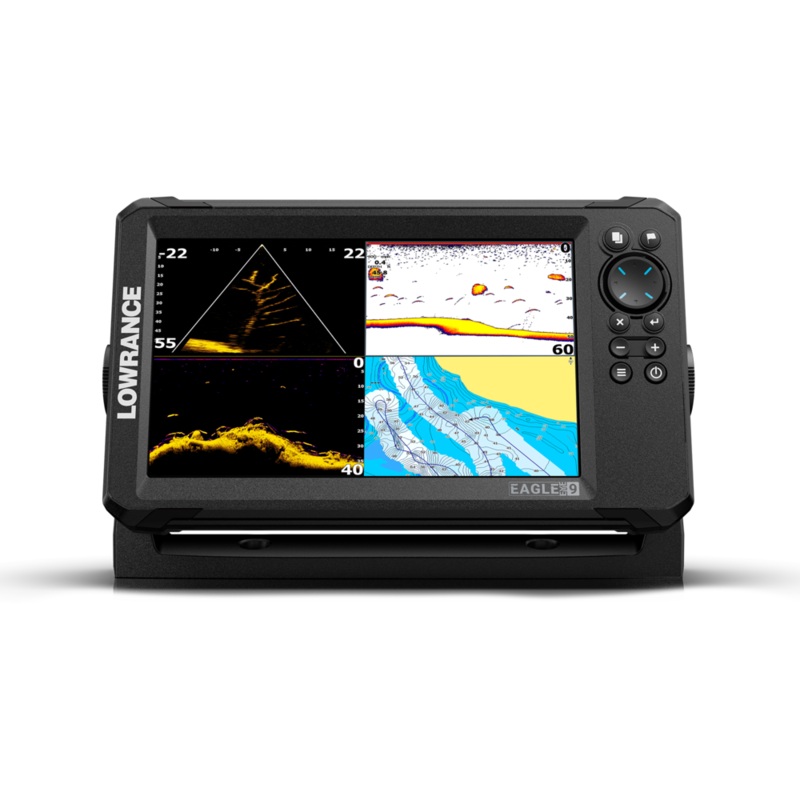

Eagle Eye 9 Live + C-MAP: 9″ IPS screen, Eagle Eye transducer, C-MAP Discover microSD card charts for the US and Canada

Easy and affordable access to live sonar lets you watch fish react to your lure in real time. Eagle Eye brings you the same best-in-class live sonar resolution as seen on ActiveTarget 2 in more focused down and forward views. With a smooth and consistent image, Eagle Eye provides all the detail you need to know when to strike.

Full Flexibility

The highly-focused live sonar combines with CHIRP and DownScan Imaging (with FishReveal) in a single transducer, giving you true Eagle-like vision for any kind of fishing.

CHIRP SONAR

CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.

DOWNSCAN IMAGING

DownScan Imaging makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.

FISHREVEAL

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification

AUTOTUNING SONAR

Simple autotuning sonar gives you the optimal settings from the start so you dont have to spend time trying to find them yourself.

C-MAP DISCOVER ONBOARD

Spend more time fishing and less time searching, with high-resolution C-MAP Discover OnBoard charts included for the US and Canada. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.

GENESIS LIVE

Know your local waters better than anyone with the ability to create custom -foot contour maps of your local lake or uncharted water in real time.

• 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging with FishReveal)
• Autotuning live sonar with focused down and forward views
• Detailed C-MAP charts feat. Genesis Live
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal mode
• Increase contrast and viewability with all-new Imaging color palettes

Display

Backlight Color Pure white LED Resolution 1024 x 600 Screen Brightness 1000 NITS Size and Type 9″ IPS Display Viewing Angles 85 top/bottom, 85 left/right

Electrical

Power Consumption, max. 650 mA @ 12 V DC with backlight on full Power Consumption, typical 650 mA @ 12 V DC with backlight on full Recommended Fuse Rating 3A Supply Voltage 12v DC (10.8-17VDC) Humidity 66C, 95% relative humidity (RH) for 48 hours

Environment

Operating Temperature Range 5F to 131F (-15C to 55C ) Storage Temperature Range 4F to 140F (-20C to 60C ) Waterproof rating IPX7 with card door closed

GPS

Correction SBAS Time to First Fix 45s

MFD

Cartography supported C-MAP DISCOVER. External Storage 1 slot (microSD 32 GB maximum) Waypoints, Routes, Tracks 3000 Waypoints 100 Routes 100 Trails Compass Safe Distance – Metric, imperial 12″ (300mm)

Physical

Dimensions (W x H x D) 287.2 mm (11.30″) x 162.5 mm (6.39″) x 90 (3.54) Mounting Type Gimbal bracket or dash mount Weight 0.9 kg (1.98 lb)

Other

Warranty Period 1 Year + 4 additional years of upgrade options totaling 5 years Interface Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight

Comes with: EAGLE 5″/ 7″/ 9″ POWER CABLE000-16314-001
