Description

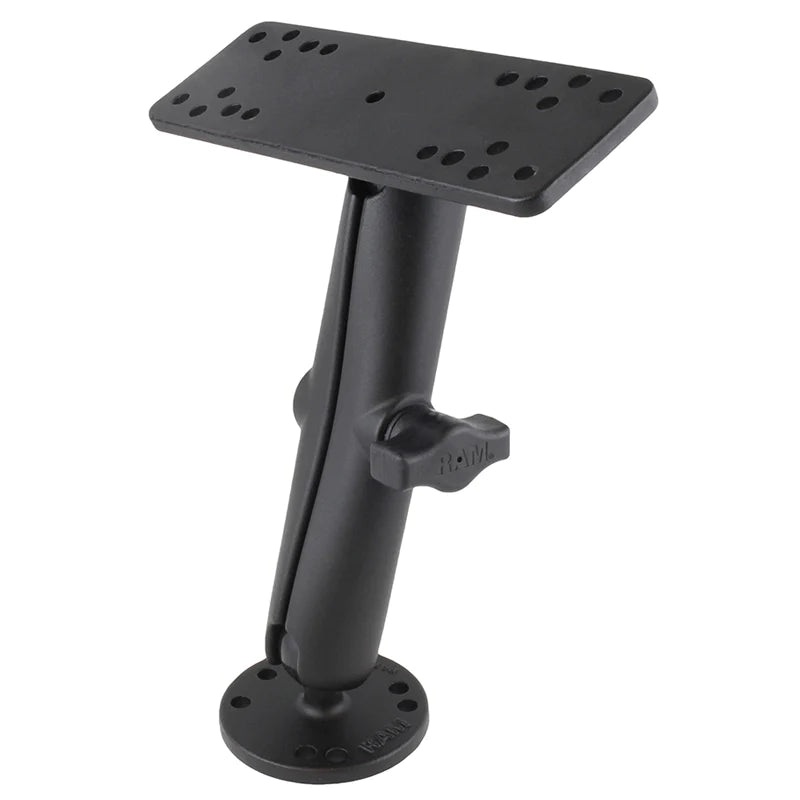

The RAM-B-111U-A consists of a short double socket arm, 2.5″ diameter round base and 6.25″ x 2″ rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Short ArmRAM-B-111U-A:

Overall Height: 3.75″.SOCKET TO SOCKET LENGTH 1.75″
Medium ArmRAM-B-111U:

Overall Height: 5″.SOCKET TO SOCKET LENGTH 3″
Long ArmRAM-B-111U-C:

Overall Height: 7.3125″.SOCKET TO SOCKET LENGTH 5.31″
